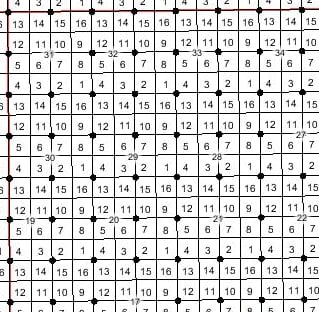

SaskGrid Township Fabric Map accurately integrates key datasets into a standardized provincial grid for land parcel identification and location. It incorporates both the surveyed base data of the southern Township Fabric Map and newly adjusted theoretical northern dataset and is spatially integrated with the cadastral fabric. It provides a common platform to more effectively reference and manage land administration, exploration and development. SaskGrid provides detail to the legal subdivision level (there are 16 legal subdivisions per section) for the entire province.

This dataset is topologically structured, suitable for use in GIS and CAD systems, and designed to serve as the base for a wide range of applications where a higher level of detail and full provincial coverage is needed. There is also added flexibility with having both the Quarter Section Monument Shape and ASCII files included.

Product Specifications

SaskGrid Components:	Township shape file Section shape file Quarter Section shape file Legal Subdivision shape file Monument shape file Monument ASCII file
Data Currency:	Components maintained annually, current to December 31 of the previous year
Format:	ESRI ArcShape, ASCII
Datum:	NAD 83, CSRS98
Projection:	UTM Extended Zone 13
Coverage:	Provincial
Metadata:	Complete metadata for this product is available on the Metadata page

Product Sample

Download a SaskGrid Township Fabric Map sample in ArcGIS format

Annual Maintenance Cost

Provincial Coverage:	$202.91
Provincial Coverage (with Administrative Boundary Overlay):	$304.36
Partial Coverage:	Contact us

Order Now

To order this product now, please contact us by one of the options below.

Phone (Toll Free):	1-866-ASK-ISC1 (1-866-275-4721)
Email:	[email protected]
Payment Information:	All orders must be paid for at the time the order is placed, or can be charged against your GDC account (if you have one).
	We accept MasterCard, VISA, cash, debit or cheque. (Cash and cheque, Canadian funds only.)
